7'x16' Refrigerated Trailers

Base Price $28,000.00

without storage box or tread plate

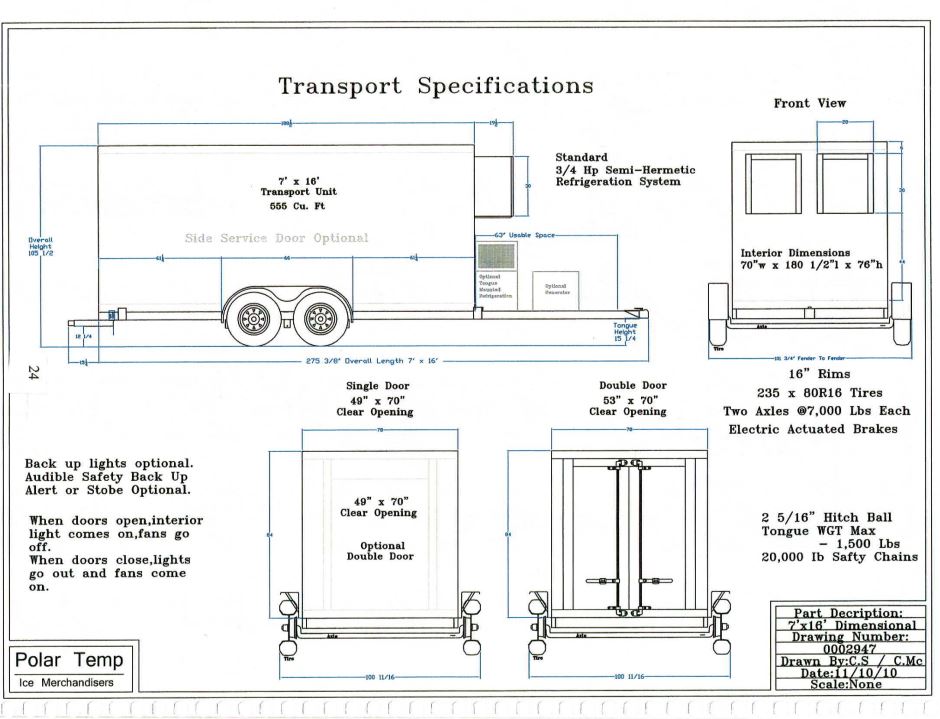

7'x16' Trailer Diagrams

7'x16' Trailer PDF

Length 276 Inches
Width 102 Inches
Tongue Height 15 1/4 Inches
Capacity 14,000 lb.
Made in America Yes
Material Steel
Type Trailers

Polar Temp 7'X16' AD W/TRAILER Details

Safely and conveniently haul refrigerated ice transports with this Polar Temp 7X16ADTT trailer! Designed to hold a 7' x 16' unit, this trailer allows you to securely move units between destinations when making deliveries or transporting orders. Its axle system is extremely safe, featuring springs and equalizers to aid in keeping all four tires in contact with the road at all times, while also including electric brakes. Each of its two axles has a capacity of 7000 lb. This trailer comes with ST235/80R16 range E tires, and the steel belt tires are used to match trailer capacity and help eliminate sway.

A heavy-duty tubular steel main rail, combined with steel angle cross members, forms a strong and reliable chassis. The side-wind tongue jack with foot is located at the hitch, allowing for easy raising and lowering. The hitch features a 2 5/16" ball and a 1500 lb. capacity. Safety chains, with a 20,000 lb. capacity, are included. Safety is at the forefront of this trailer, which features the Break-a-Way kit that activates the trailer brakes if the unit is separated from the towing vehicle!

Overall Dimensions:
Length: 23'
Width: 8' 6"
Tongue Height: 15 1/4"
